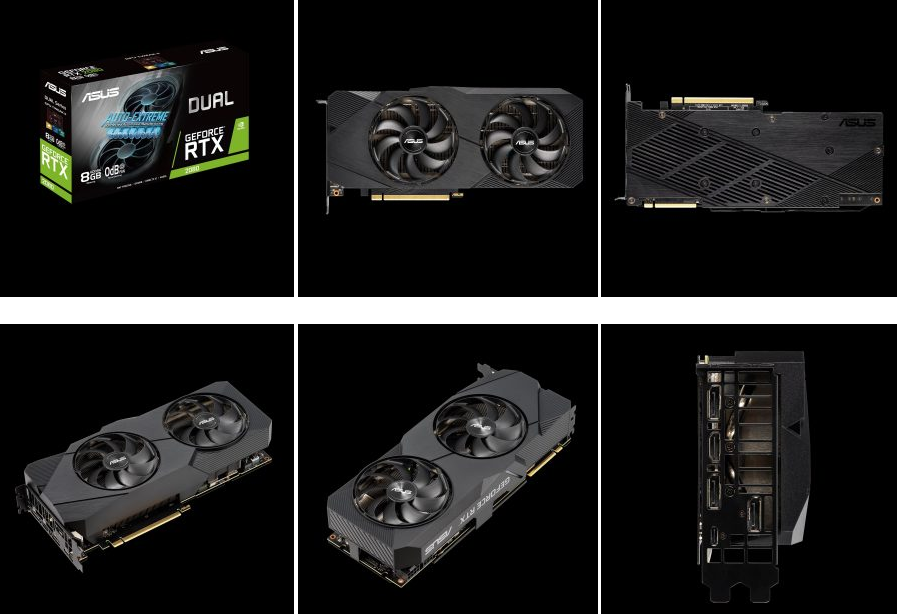

Asus has announced the launch of its all-new high-performance RTX-based NVIDIA graphics cards. The Asus GeForce RTX 2080 Dual EVO will feature a dual Axial-Tech fan design along with a 2.7 PCIe slot width design. Like many other modern cards, the fan will run at zero RPMs while the card is idle to improve fan life. On the PCB side of the card, Asus has added an aluminum plate to help with structural support, as well as provide some light cooling.
Also, the RGB lighting has been integrated into a shroud from the new card along with the top edge near the power connectors. The RGB lighting and its effects do not require a separate connection and can be controlled using the Asus Aura Sync software. As for power, this is given to the GPU by the 8-pin PCIe power connectors from the power supply. In terms of monitor support, the Asus GeForce RTX 2080 Dual EVO will have 3x DisplayPort 1.4 ports, an HDMI 2.0b port, and a single USB-C VirtualLink port for VR.
Details about Asus GeForce RTX 2080 Dual Evo
Model: Asus GeForce RTX 2080 Dual EVO (DUAL-RTX2080-8G-EVO)
Bus Standard: PCI Express 3.0
Video Memory: GDDR6 8GB
Memory Clock: 14000 MHz (OC Mode) and 14000 MHz (Gaming Mode)
Memory Interface: 256-bit
Engine Clock: OC Mode – GPU Boost Clock: 1740 MHz, GPU Base Clock: 1515 MHz
Gaming Mode (Default) – GPU Boost Clock : 1710 MHz , GPU Base Clock : 1515 MHz
CUDA Cores: 2944
Max Resolution: 7680×4320
Interface: HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.2)
USB Type-C Support:Yes x1
Power connections: 1 x 6-pin, 1 x 8-pin
Dimensions: 10.5 ” x 4.65 ” x 2.28 ” Inch
26.7 x 11.8 x5.8 Centimeter
It should be clarified that the new card is already available now and more information can be found on the Asus product page (click here).
